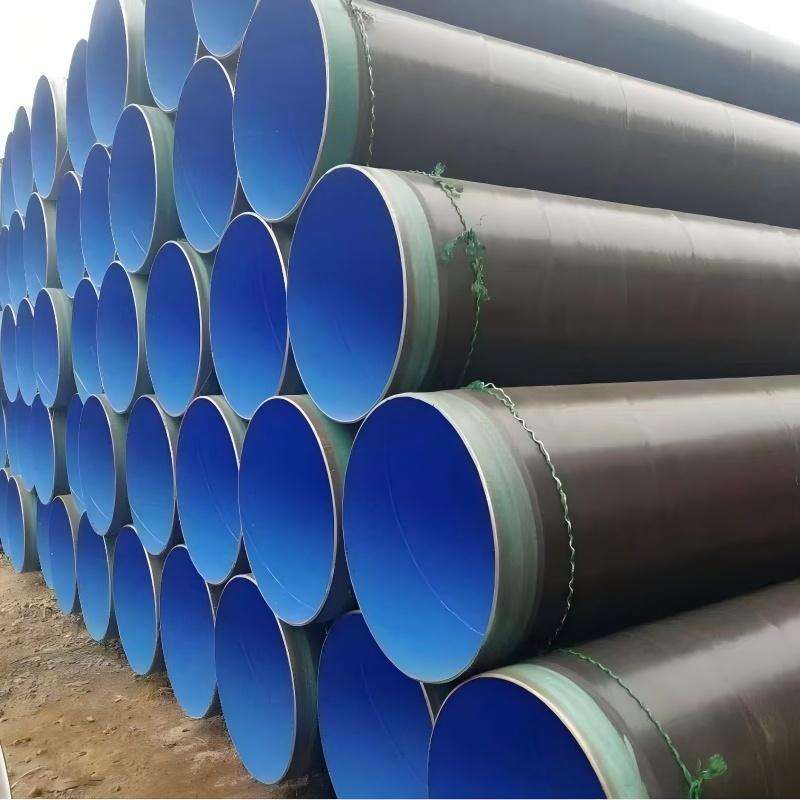

3PE Anti-corrosion Seamless Steel Pipe stands out with exceptional anti-corrosion performance. Its 3-layer polyethylene coating (epoxy primer, adhesive, PE layer) forms a robust barrier, resisting chemicals, moisture, and rust—ideal for harsh environments like oil/gas pipelines and water projects.
Seamless construction enhances pressure resistance, minimizing leakage risks. The coating ensures long service life, reducing maintenance costs. It combines structural strength with durability, withstanding external impacts. Easy to install, it’s reliable for long-distance transportation and underground applications, balancing anti-corrosion efficiency with cost-effectiveness.
Superb and Long-Lasting Corrosion Resistance (Core Advantage)
The 3-layer coating structure forms a "physical barrier + chemical protection" dual defense system, which is far more durable than single-layer anti-corrosion treatments (such as galvanizing or single-layer painting):
1st Layer (Inner Layer): Epoxy Primer (FBE - Fusion Bonded Epoxy) A 80-120μm thick fusion-bonded epoxy layer is tightly bonded to the surface of the seamless steel pipe. It has strong adhesion (adhesion strength ≥100N/cm) and chemical inertness, effectively isolating the steel pipe from corrosive media (such as soil moisture, saltwater, oilfield sewage, and industrial chemicals) and preventing electrochemical corrosion of the steel substrate.
2nd Layer (Middle Layer): Adhesive A 170-250μm thick copolymer adhesive layer acts as a "bridge" between the epoxy primer and the outer polyethylene layer. It has excellent compatibility with both layers, eliminating the risk of delamination caused by differences in thermal expansion coefficients and ensuring the integrity of the entire coating system.
3rd Layer (Outer Layer): Polyethylene (PE) A 1.8-3.7mm thick high-density polyethylene (HDPE) outer layer provides a tough, wear-resistant physical barrier. It resists impact, scratch, and UV aging, and can withstand external mechanical damage during transportation, burial, or operation (e.g., soil extrusion, rock friction).
Under standard burial conditions, the 3PE coating can maintain effective anti-corrosion performance for 30-50 years, significantly reducing maintenance costs for long-distance pipelines.
High Construction Efficiency and Low Maintenance Cost
Easy Installation: The 3PE coating has good flexibility and impact resistance, so it is not easy to be damaged during pipe hoisting, welding, or joint processing. The coating at the pipe ends (reserved for welding) can be quickly repaired with matching 3PE repair materials, ensuring the integrity of the anti-corrosion system.
Long Service Life and Low Maintenance: Compared with traditional anti-corrosion pipes (e.g., galvanized pipes, painted pipes) that need to be repaired or replaced every 5-10 years, 3PE anti-corrosion seamless steel pipes have a service life of more than 30 years. During operation, they rarely require anti-corrosion maintenance, greatly reducing the long-term operation cost of pipeline projects.
