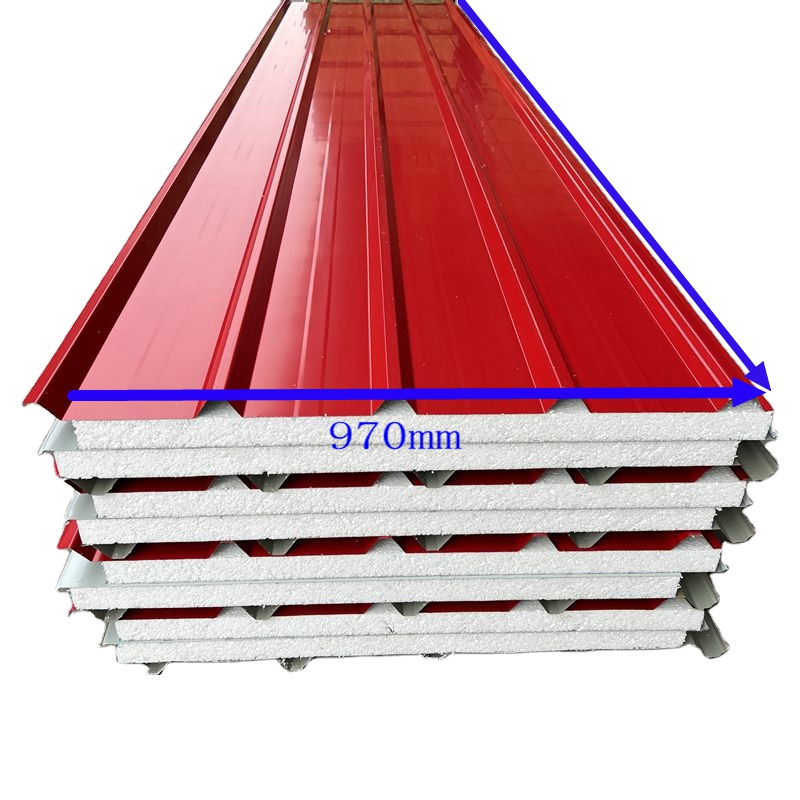

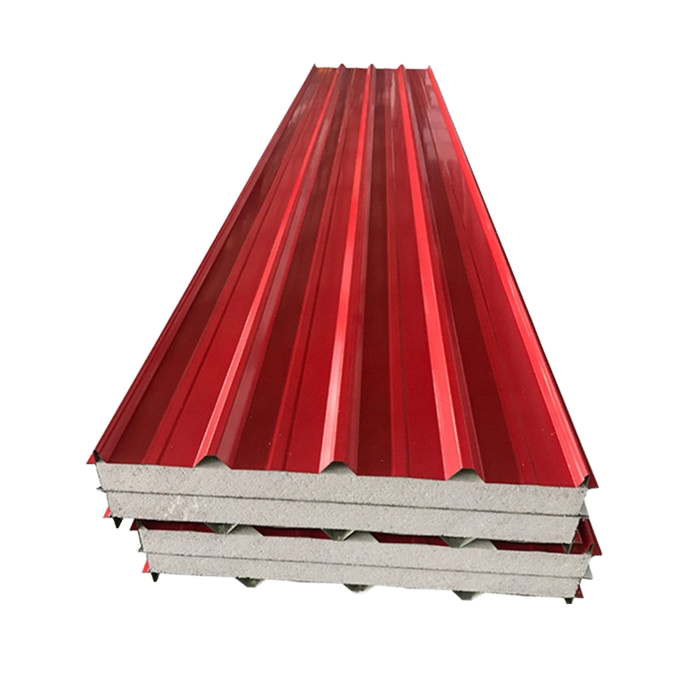

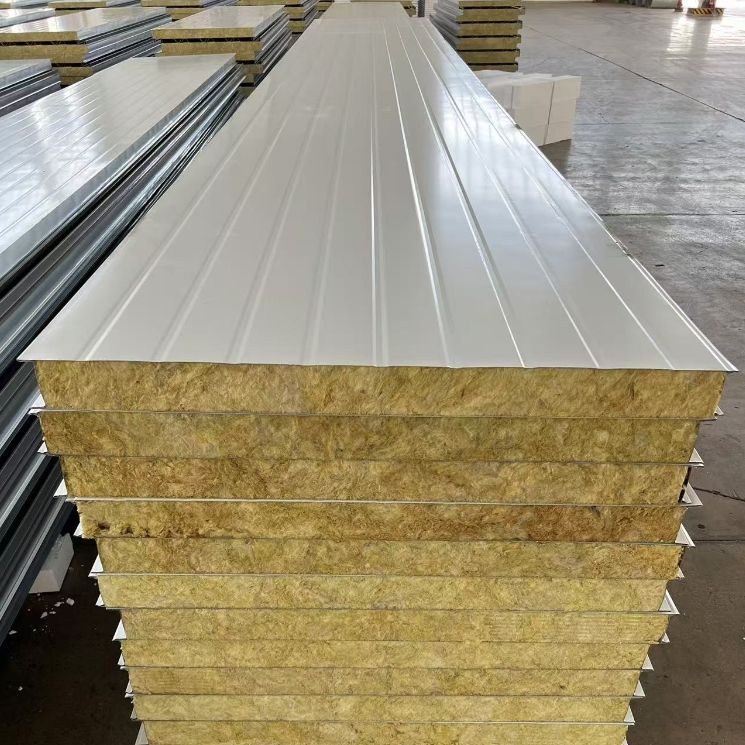

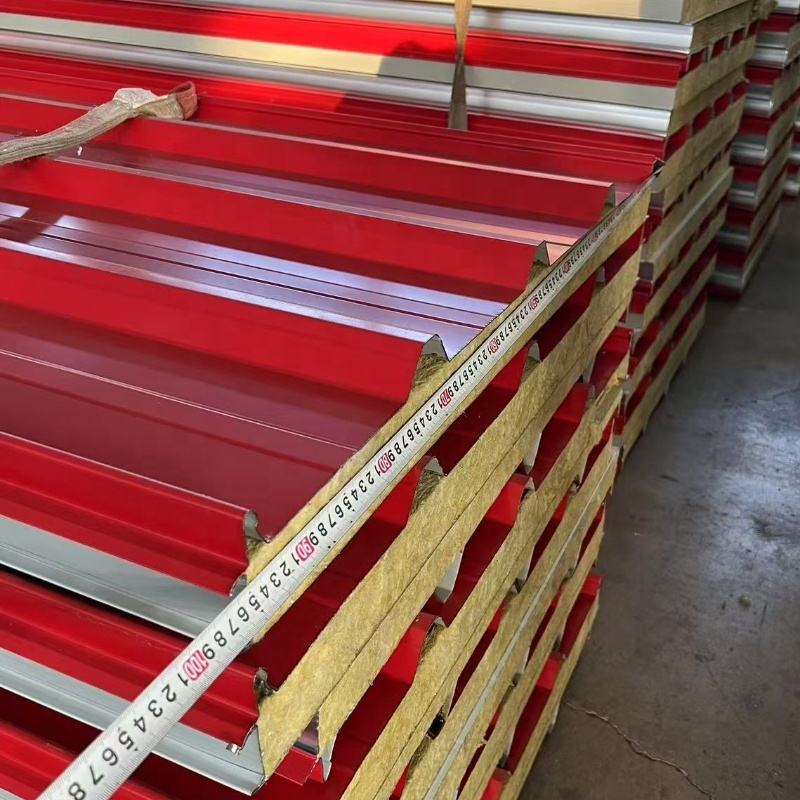

Insulated Sandwich Panel EPS PIR Rockwool Panel of Fire Rated Sandwich Panel for Warehouse

1. Robust Structural Performance for Warehouse Demands

• High load-bearing capacity: The outer layer (typically 0.3 - 0.8 mm galvanized/galvalume color steel) provides tensile strength, while the dense core (Rockwool/PIR/EPS) enhances rigidity. Panels can support static loads (e.g., ceiling-mounted lighting, ventilation) and dynamic loads (e.g., wind pressure, minor impacts from equipment).

• Span adaptability: Customizable lengths (up to 12 m) and thicknesses (50 - 200 mm) allow panels to cover large warehouse spans without additional support beams, optimizing internal storage space (critical for maximizing pallet/rack capacity).

• Dimensional stability: Resists warping, shrinking, or expanding under temperature fluctuations (common in warehouses with heating/cooling systems), ensuring long-term structural integrity.

2. Energy Efficiency & Cost Savings

• Low thermal conductivity: All cores minimize heat transfer—keeping interiors warm in cold climates (reducing heater use) and cool in hot climates (lowering air conditioning energy consumption). For temperature-controlled warehouses (e.g., cold storage), PIR panels can cut HVAC costs by 25 - 40% compared to traditional materials.

• No thermal bridges: The continuous sandwich structure eliminates gaps (a common issue with separate insulation and cladding), ensuring uniform insulation across walls and roofs. This prevents energy waste from "hot/cold spots" and reduces condensation (which can damage stored goods).

• Long-term energy payback: While Rockwool/PIR panels have higher upfront costs, their superior insulation performance leads to faster energy cost recovery (typically 2 - 5 years for most warehouses).

3. Fast & Efficient Installation

• Modular prefabrication: Panels are factory-produced with precise dimensions (customized to warehouse blueprints), eliminating on-site cutting, mixing, or curing (common with concrete/masonry). This reduces construction waste by 70 - 80% and avoids errors from on-site fabrication.

• Simple assembly: Panels connect via interlocking joints, bolts, or weatherproof sealants—requiring only basic tools and a small team. For a 1,000 m² warehouse, wall/roof installation can be completed in 3 - 5 days (vs. 2 - 3 weeks for traditional brick walls), accelerating project timelines.

• Integrated functionality: Combines insulation, fire protection, and exterior cladding in one product—no need for separate installation of insulation boards, fire barriers, or decorative layers. This reduces labor costs and simplifies project management.

How long is your delivery time?

Samples:7-10working days;bulk production:10-15 working days. lt also should bedepend on what kind of product and the quantity you require

Do you provide samples, is it free or extra?

Yes,We'd like to provide samples before the bulk production,for the custom metalstamping samples it can be free after making mold;Yes, we can do OEM according to yourrequirement.Do you provide ODM/OEM service? Yes,OEM /ODM is welcome, Please feel free tosend us your drawing or sampleslf

You make poor quality goods,will you refund ourfund?

As a matter of fact,we wont take a chance to do poor quality products. Meanwhile,wemanufacture goods quality products until your satisfaction.

Are you making by yourself?

Yes, we are. we have our own factoryand showroom. Warmly welcome to visitingour factory at any time.

What is your terms of payment?

T/T,30% as deposit,and 70% balancebefore delivery

How can i get the quotation?

Please send us information for quote; drawing,material,weight,quantity andrequest,we can accept PDF.SGS,DwGSTEP file format, lfyou don't have drawing,please send the sample to us,we can quote base on your sample too
