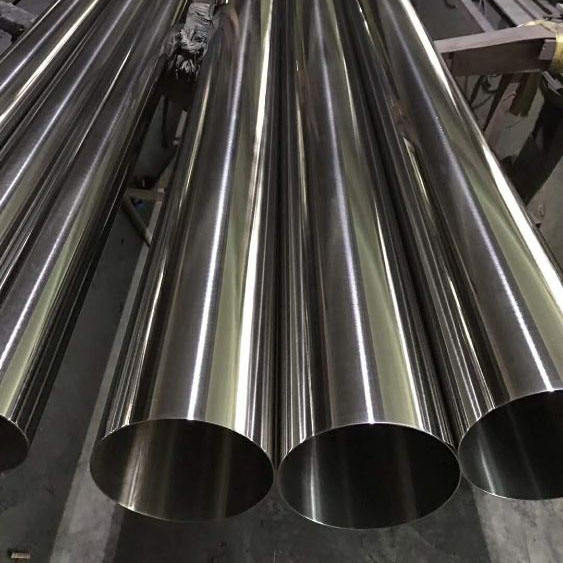

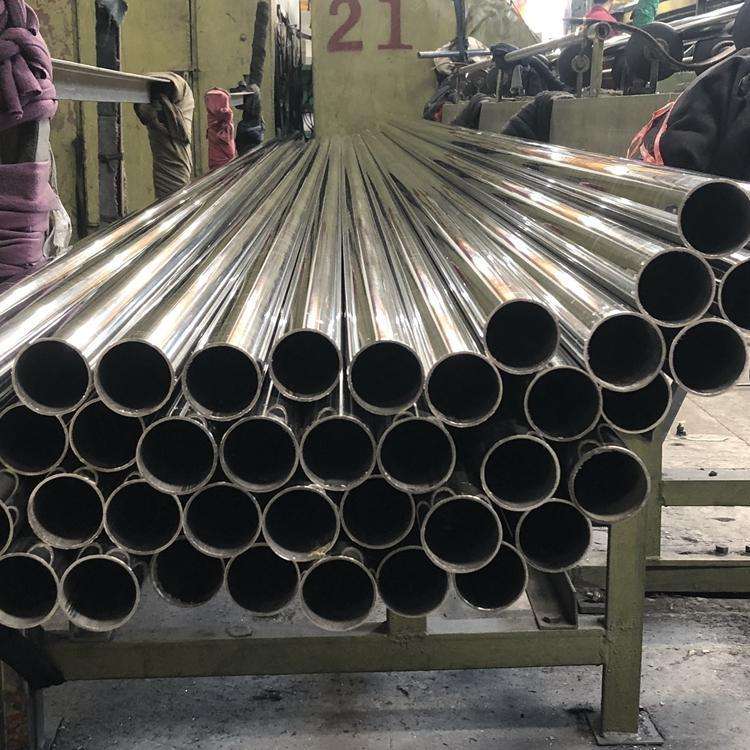

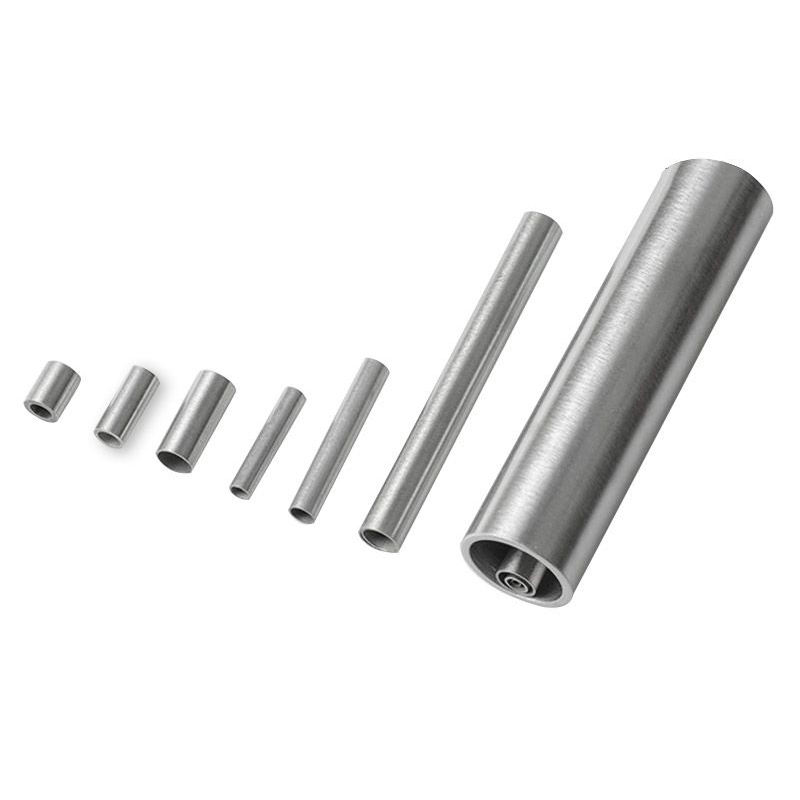

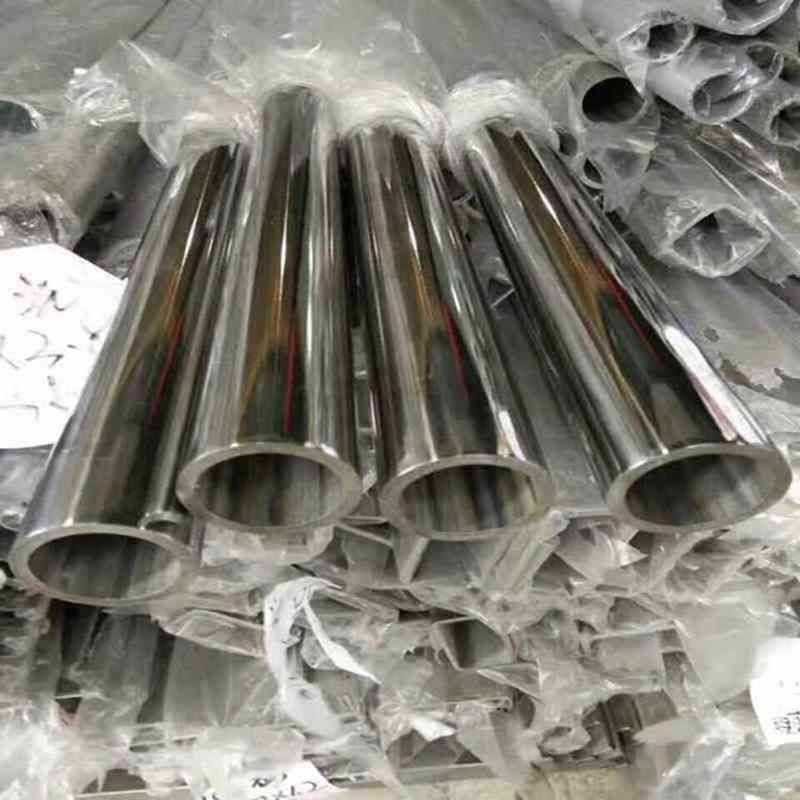

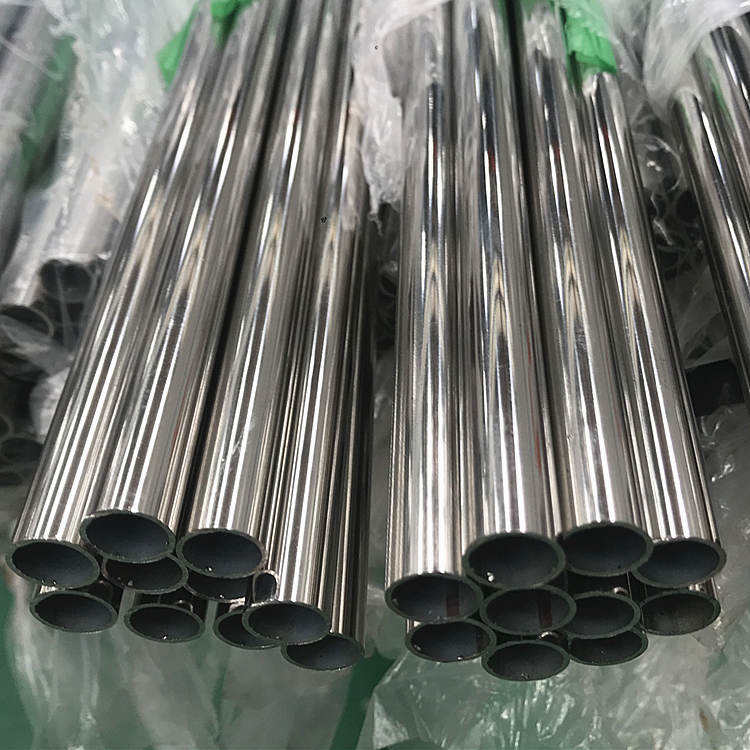

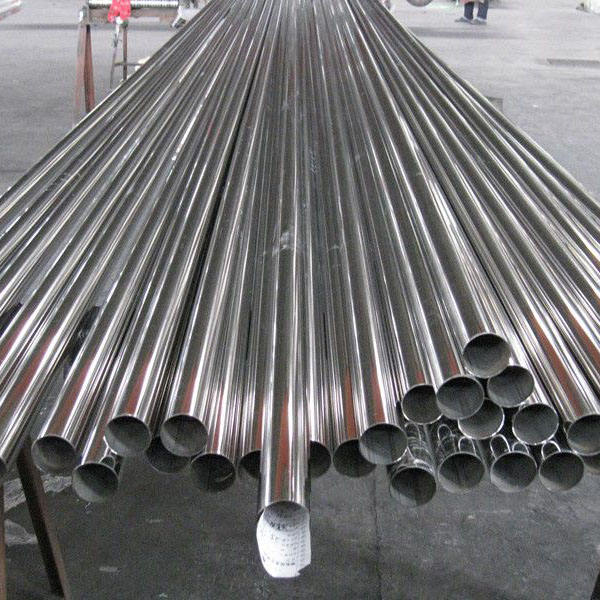

Our Welded Stainless Steel 300 Series Pipes (304, 316, etc.) excel in versatility and durability. Crafted from high-grade alloys, they offer strong corrosion resistance, ideal for chemicals, food processing, and marine use.
The precision welding ensures uniform strength and tight dimensional tolerance, fitting seamlessly into systems. Lightweight yet robust, they handle moderate pressures reliably. Cost-effective vs. seamless options, they balance performance and affordability. Available in varied sizes, they suit diverse industrial needs—trusted for longevity and consistent quality.
I. Material Performance: Inheriting 300-Series Stainless Steel Advantages
As welded products of 300-series stainless steel, these pipes retain the material’s signature properties, which are the foundation of their reliability:
1. Excellent Corrosion Resistance (Core Strength)
300-series stainless steel relies on chromium (Cr, 16–26%) and nickel (Ni, 6–22%) to form a dense, stable chromium oxide (Cr₂O₃) passive film on the surface, preventing further oxidation and corrosion. Key grade-specific enhancements include:
304/304L-grade welded pipes: Suitable for general environments (atmosphere, fresh water, mild detergents) and non-aggressive scenarios (e.g., indoor plumbing, food processing). 304L (low carbon, ≤0.03%) adds resistance to intergranular corrosion (critical for welded joints, as high carbon can precipitate carbides during welding and weaken corrosion resistance).
316/316L-grade welded pipes: Add molybdenum (Mo, 2–3%) to the 304 formula, significantly improving resistance to chloride ion (Cl⁻) corrosion. They withstand seawater, salt spray, and corrosive media (e.g., dilute acids, pharmaceutical intermediates), avoiding "pitting corrosion" that plagues lower-grade stainless steels.
2. Good Mechanical Properties for Versatile Use
Ductility & Toughness: Austenitic stainless steel has high ductility at room temperature, allowing welded pipes to be bent, formed, or cut without cracking (e.g., bending 304 welded round pipes into elbows for piping systems).
Strength Balance: While welded pipes have slightly lower tensile strength than seamless 300-series pipes (due to the weld seam), they still meet most industrial requirements: e.g., 304 welded pipes typically have a tensile strength of ≥515 MPa and elongation of ≥40%, sufficient for non-high-pressure scenarios.
Temperature Adaptability: Resists oxidation at high temperatures (e.g., 304 can tolerate up to 870°C in intermittent use) and retains toughness at low temperatures (no brittle fracture even at -196°C), suitable for both high-temperature exhaust and low-temperature fluid applications.
For 304L/316L welded pipes processed to sanitary standards (e.g., polished inner/outer surfaces), they have:
Smooth surfaces (Ra value ≤0.8 μm) that prevent dirt accumulation and are easy to clean/sterilize.
No heavy metal leaching (lead, cadmium, etc.), complying with global food safety (FDA, EU 10/2011) and medical device (GMP) regulations—ideal for food, dairy, and pharmaceutical pipelines.
II. Manufacturing Advantages: Cost-Effective & Flexible
Compared to seamless stainless steel pipes (made by piercing metal billets), welded 300-series pipes have unique manufacturing benefits that drive their widespread use:
1. Lower Cost & Higher Cost-Efficiency
Welded pipes use flat stainless steel strips/coils as raw materials, which are cheaper and more readily available than the metal billets for seamless pipes.
The welding process (e.g., TIG, laser welding) has higher production efficiency (faster speed, continuous manufacturing) and lower energy consumption, reducing overall production costs. For large-diameter or thin-walled pipes, the cost gap between welded and seamless can be as high as 30–50%.
2. Flexible Sizing & Wide Specification Range
Welded pipes can be produced in a broader range of diameters, wall thicknesses, and shapes:
Diameters: From small sizes (e.g., 6mm OD for medical tubing) to large diameters (e.g., 2000mm OD for industrial chimneys).
Wall thicknesses: Thin-walled (≥0.5mm, for light-duty structures) to thick-walled (≤20mm, for pressure-bearing scenarios).
Shapes: Not limited to round—easily manufactured into square, rectangular, or oval pipes (seamless pipes struggle with non-circular shapes for large sizes).
3. Consistent Quality with Advanced Welding Tech
Modern welded 300-series pipes use high-precision welding processes (e.g., Tungsten Inert Gas (TIG) welding, High-Frequency Induction Welding (HFI)) to ensure weld seam reliability:
TIG welding: Produces clean, high-strength welds with minimal spatter, suitable for sanitary or corrosion-sensitive applications (e.g., pharmaceutical pipes).
Post-welding treatments: Annealing (to eliminate internal stress), pickling (to remove oxide scales on the weld seam), and passivation (to restore the passive film)—ensuring the weld area has corrosion resistance comparable to the base material.
